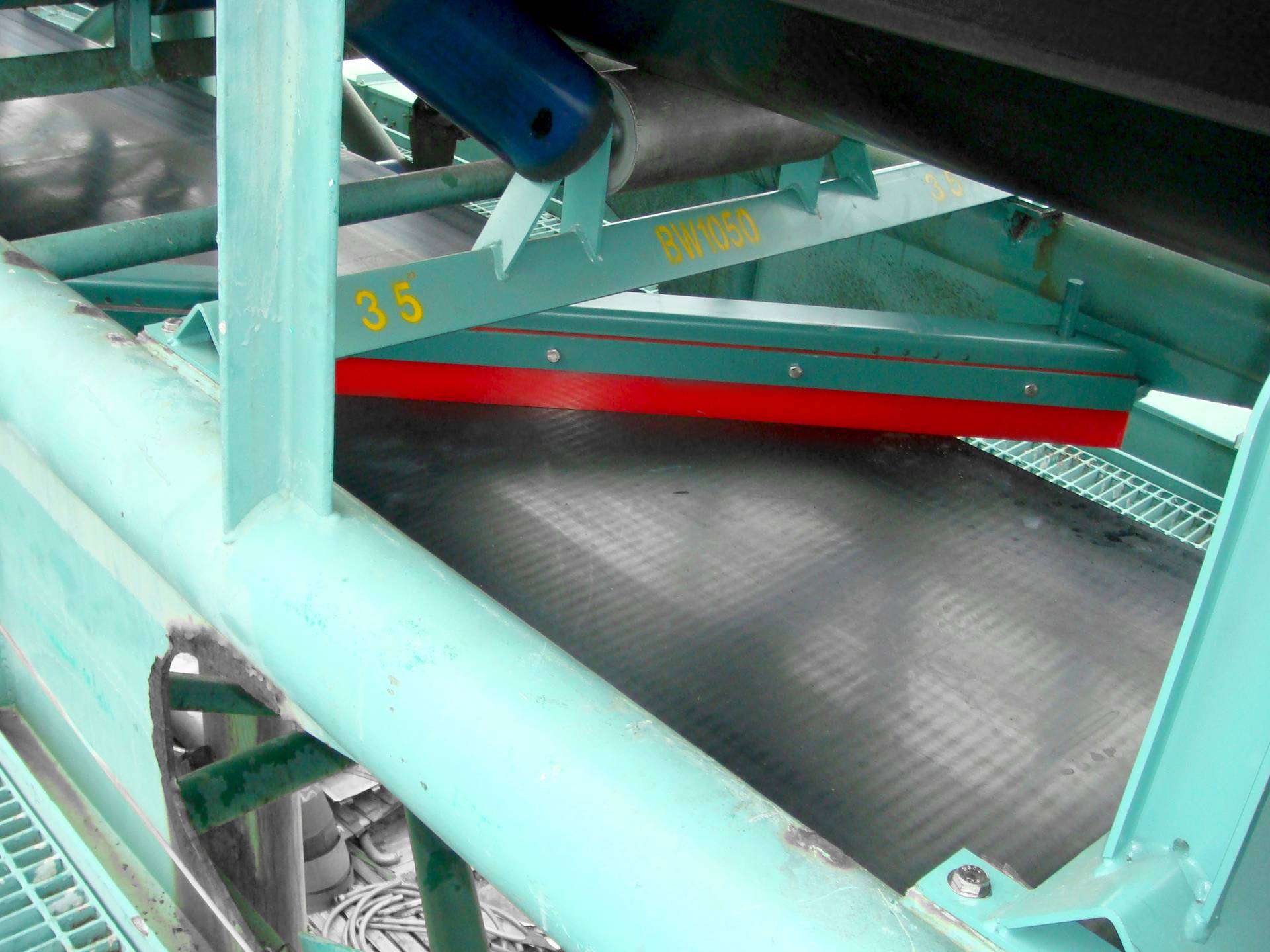

Diagonal Plow Belt Cleaner
UNIQUE ANGLED BLADE THAT CREATES QUICK, EFFECTIVE SPIRAL ACTION, JIMWAY'S NNC BELT CLEANER IS AN EFFECTIVE SOLUTION FOR TAIL PULLEY PROTECTION ON REVERSIBLE BELTS.
JIMWAY's NNC belt cleaner is designed to protect against carryback that may fall onto the inside of the return belt and cause damage or mistracking. Meanwhile, it protects tail pulleys, mechanical splices and pulley lagging. Carryback adheres to the belt, which may causes residue build-up on tail pulleys. Therefore, belt mistracking or belt-edge damage results in unscheduled downtime. The diagonal plow belt cleaner is no maintenance needed and floats on the belt surface to remove residue without needing adjustment.
|Belt width||600~2000mm [24"~78"]|
|Cleaning direction||Reversible direction|
Diagonal PU blade
- For reversible belts
- Without risk to the belt, splices, or itself
- Reducing residues on the tail pulley
- Easy blade change
- Extending the belt service life
Adjusting by gravity
- No maintenance needed
